Other RAL colors or Sablé colors are available on request.

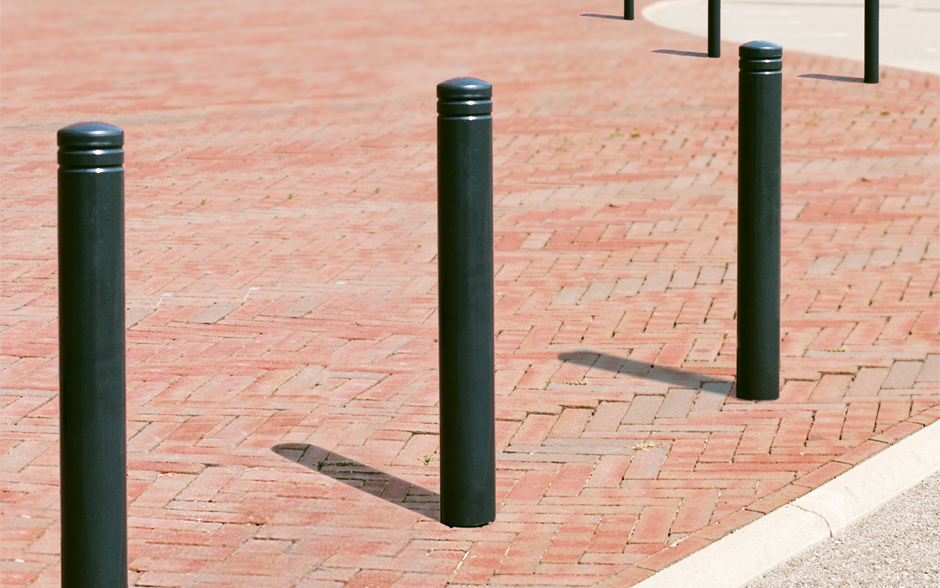

The Mark barrier poles combine a contemporary appearance with maximum functionality. The extensive range of sizes and materials mean that the Mark barrier pole is applicable in various surroundings. The Mark is characterised by the two thin rings below the top.
Need to know more?
FEATURES
- wide range of options
- several functions
- timeless design
MODELS
Fixed and removable
The fixed bollard is available with a concrete base. The removable bollard is available with a concrete base or with a storage element.
STOWING
The removable post can be folded down into the Drop-Box storage element. This means that the post can be stowed below ground level temporarily. The cover plate of the Drop-Box storage element is made of diamond plate in order to reduce the chance of slipping. Both the post and the storage element can be operated easily using a triangle key.
ACCESSORIES
- reflector strips: standard white and red, other colours available upon request
- ground sleeve for use with removable bollard
- concrete base for use with removable bollard
- storage element for use with removable bollard
- stainless steel hook key for use with removable bollard
MATERIALS AND TREATMENT
Pole: steel, galvanised and coated. RVS 316, pickled, brushed and passivated
Storage element: stowing tray: steel, galvanized. Cover plate: diamond plate, galvanized
Chain and cap brackets: steel, galvanised
COLOURS
Standard colours: RAL 5011 Steel blue, RAL 6009 Fir green, RAL 7001 Silver grey, RAL 7016 Anthracite grey, RAL 9005 Jet black. Other RAL colours are available on request. Other colours reflective strips available on request.
LOCKING SYSTEM
The RVS locking pole is fixed to the base plate of the concrete block using a hook key. The butterfly nut on the locking pole forms a built-in security against breakage and is simple to replace after vehicle damage.

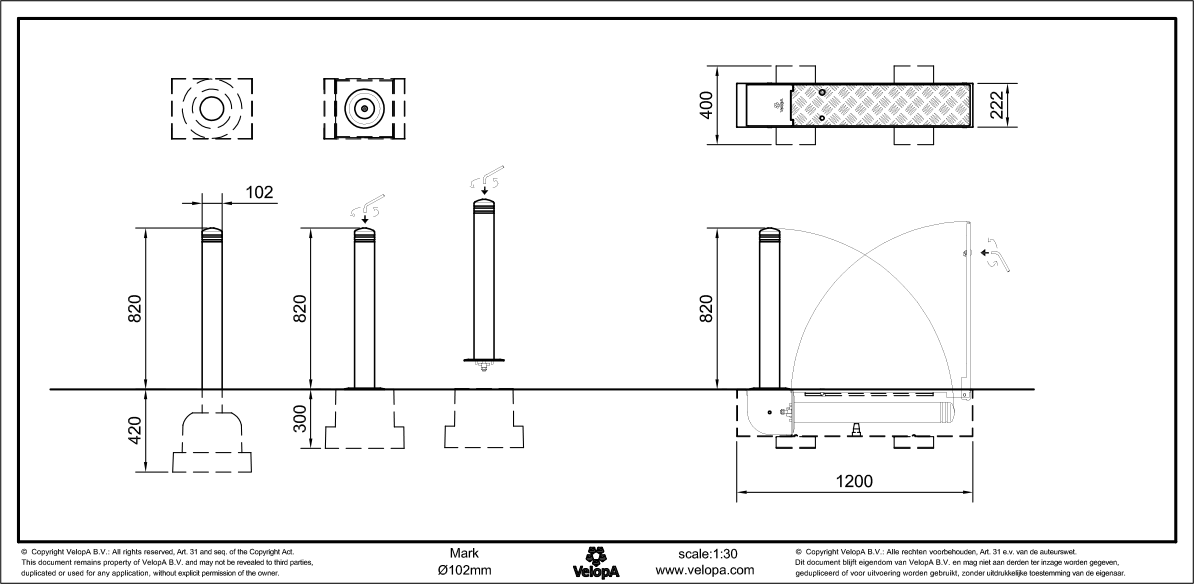

Mark fixed:
- With a poured concrete anchor installed below ground level
Mark removable:
- Concrete anchor is installed flush with the ground
- Concrete anchor is dug into the ground to ensure level paving
The Drop-Box storage element is installed flush with the ground. The recess is equipped with foot plates for optimum stability.
